Open Length Belting

Open Length Neoprene Timing Belt in MXL and 3mm HTD pitches, and matching Aluminium Belt Clamps. These are commonly used where a synchronous, linear drive is required.
Typical applications: XY tables, agitators, linear motion/positioning/transfer systems.
They run with the corresponding pitch Timing Pulleys

Open Length Belt applications

Open Length Belt
Belt Specification
Material: Fiberglass Reinforced, Neoprene
Tooth forms: MXL, 2.03mm (0.08") pitch
HTD, 3mm pitch
Belt lengths:  Sold per metre in continuous lengths up to 50 metres
Operating temperature range:  -34 deg C to +85 deg C (-30 deg F to +185 deg F)

Part no Tooth
Pitch
Belt
Width
Working
Tension
N (Ib)
BMXL025OL MXL
2.03mm
6.35 mm 20N
B3M009OL HTD
3mm

9mm 100N
MXL belt profile
3M belt profile

Clamp Specification
Material: Aluminium
Tooth forms: MXL, 2.03mm (0.08") pitch
HTD, 3mm pitch

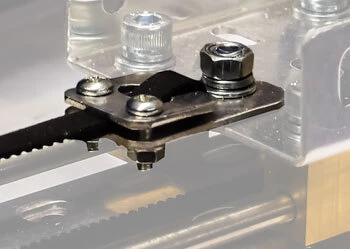

Belt clamps

MXL Clamping Plate Dimensions
3mm HTD Clamping Plate Dimensions


Select from our range of Open Length Belts and Clamps below.

Display: ListGrid
Show:
Sort By:
Open Length 3mm HTD belt, 9mm wide
B3M009OL
Open Length 3mm HTD belt, 9mm wide. The unit for this part is per metre ..
Stock: 44 metres
£8.21 /metre
Excl. VAT: £6.84
10 or more: £6.98 /metre
25 or more: Please ask
Open Length MXL belt, 6.35mm wide
BMXL025OL
Open Length MXL belt, 6.35mm (0.25") wide. The unit for this part is per metre ..
Stock: 13 metres
£6.82 /metre
Excl. VAT: £5.68
10 or more: £5.81 /metre
25 or more: Please ask
3mm HTD Clamping Plate
CP3M009
3mm HTD Clamping Plate for Open Length Belt. ..
Stock: 4 pcs
£8.65 /each
Excl. VAT: £7.21
10 or more: £7.96 /each
25 or more: Please ask
MXL Clamping Plate
CPMXL025
MXL Clamping Plate for Open Length Belt. ..
Stock: 2 - 3 Days
£7.87 /each
Excl. VAT: £6.56
10 or more: £7.23 /each
25 or more: Please ask
