Plastic Racks

A range of plastic gear racks in metric module pitches. These racks are ideal where linear motion is required and are compatible with our Spur Gears of the corresponding pitch.

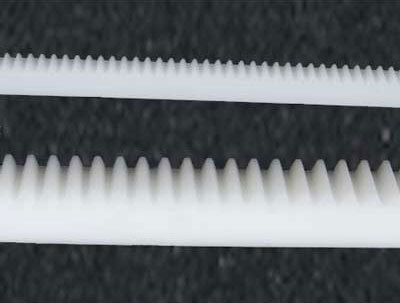

Plastic Gear Rack
Specification
Material: Delrin Acetal
Tooth form: Metric module profile with 20° pressure angle
compatible with our metric pitch gears of corresponding pitch
Operating temperature: -40°C to 80°C
Length: 250mm

Gear Rack drawing
All dimensions in mm
Part no MOD Width 'A' Height 'B' Pitch to Back 'C' Overall Length
RK05M 0.5 4 4.5 4 250
RK1M 1 9 9 8 250


Select from our range of gear racks below.

Display: ListGrid
Show:
Sort By:
Rack, 0.5 Mod, Length 250mm
Rack, 0.5 Mod, Length 250mm
RK05M
Rack, 0.5 Mod, Length 250mm ..
Stock: 3 - 4 Weeks
£3.78 /each
Excl. VAT: £3.15
10 or more: £3.39 /each
25 or more: Please ask
Rack, 1 Mod, Length 250mm
Rack, 1 Mod, Length 250mm
RK1M
Rack, 1 Mod, Length 250mm ..
Stock: 9 pcs
£9.34 /each
Excl. VAT: £7.79
10 or more: £8.40 /each
25 or more: Please ask
