Micro Spur Gearmotor

Micro Gear Motors. Permanent Magnet DC motors with Steel Spur Gearboxes in a very small 12mm form factor. These motors are suitable for a variety of uses from model making and robotics to automation and small scale industrial applications.

Micro Gear Motor 12
Micro Gear Motor 12 dimensions front

  Motor Data
Part Number
(Gearbox Type)
Gear
Ratio
Nominal Spec (No Load) Rated
Torque
Kgcm
Stall
Torque
Kgcm
Stall
Current
A
Weight
g
Voltage Output
Speed
Current
A
GMS12D0030  30:1  12V  1000 rpm  0.06  0.11   0.4   0.75   10g
GMS12D0050  50:1   500 rpm   0.15   0.65   10g
GMS12D0100  100:1   300 rpm   0.3   1.2   10g
GMS12D0298  298:1   100 rpm   0.73   3.3   10g
GMS12D1000  1000:1   30 rpm   2.1   10.0   10g

MICRO MOTOR MOUNTING OPTIONS.


1.The motor can be mounted directly onto a device, using the two threaded M1.6 holes in the gearbox end plate This will require the device to have two holes of 1.6mm diameter at 9mm centres either side of the motor shaft position, with a 4mm diameter hole centrally between to accommodate the bezel surrounding the shaft. See diagram below.

Micro Gear Motor 12

2. The motor can simply be secured onto a motionco Mounting Bracket with two M1.6 screws (provided). The bracket has two 5mm fixing holes in the base, at centres of 20mm, and is of sturdy stainless steel construction. It is fully compatible with the Meckit Construction System, enabling the motor to be robustly mounted directly onto Meckit channels, plates and bases without any machining operations.

Micro Gear Motor 12 and bracket

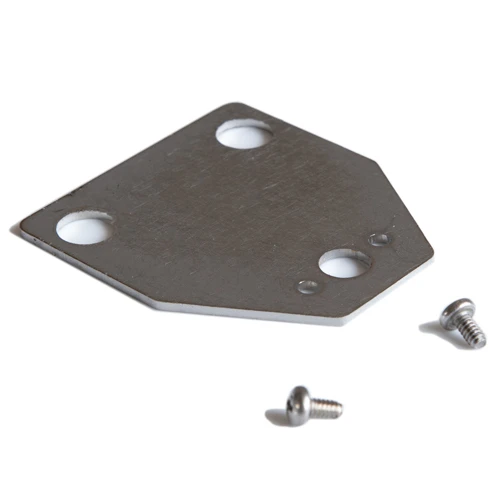

3. The motionco Mounting Plate is an alternative format of the above bracket, allowing different mounting configurations.

Micro Gear Motor 12 and plate


Select from our range of Micro Spur Gear Gearmotors below.

Display: ListGrid
Show:
Sort By:
Bracket for GMWS12 Motors
GMS12BKT
Bracket for GMS12 Motors. ..
Stock: 7 - 10 Days
£4.97 /each
Excl. VAT: £4.14
12V Micro Gearmotor, 30:1 ratio
GMS12D0030
12V Micro Electric Gearmotor with Spur Gearbox. 30:1 ratio. Output speed 1000rpm ..
Stock: 8 pcs
£12.85 /each
Excl. VAT: £10.71
12V Micro Gearmotor, 50:1 ratio
GMS12D0050
12V Micro Electric Gearmotor with Spur Gearbox. 50:1 ratio. Output speed 500rpm. ..
Stock: 6 pcs
£12.85 /each
Excl. VAT: £10.71
12V Micro Gearmotor, 100:1 ratio
GMS12D0100
12V Micro Electric Gearmotor with Spur Gearbox. 100:1 ratio. Output speed 300rpm. ..
Stock: 5 pcs
£12.85 /each
Excl. VAT: £10.71
12V Micro Gearmotor, 298:1 ratio
GMS12D0298
12V Micro Electric Gearmotor with Spur Gearbox. 298:1 ratio. Output speed 100rpm. ..
Stock: 5 pcs
£12.85 /each
Excl. VAT: £10.71
12V Micro Gearmotor, 1000:1 ratio
GMS12D1000
12V Micro Electric Gearmotor with Spur Gearbox. 1000:1 ratio. Output speed 30rpm. ..
Stock: 5 pcs
£15.04 /each
Excl. VAT: £12.54
Plate for GMWS12 Motors
GMS12PLT
Plate for GMS12 Motors. ..
Stock: 72 pcs
£3.17 /each
Excl. VAT: £2.65
