Idler Pulley

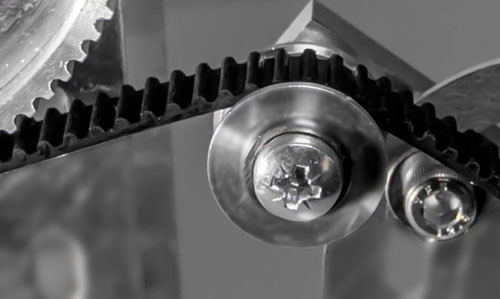

The motionco Idler Pulley is designed principally as a back idler, for use on the reverse (smooth) side of a timing belt.

It may be used on a belt drive installation, singly or in pairs:-
1. to provide appropriate tension on the belt without the need to adjust the position of either the drive or the driven pulley.
2. to route the belt so that there is adequate wrap-round (tooth engagement) on a timing pulley.
3. to act as a tracking guide when used adjacent to an unflanged pulley.

The idler is suitable for use with our MXL Timing Belts and 3M Timing Belts (in both closed loop or Open-Length forms), or any belt with a smooth backing up to a maximum width of 9mm

Idler Pulley

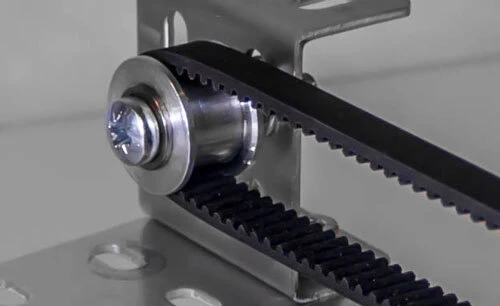

It may also be used as a front idler where there is wrap round of at least 90 degrees, e.g. as the non-driver pulley on a linear motion drive. In this usage, it will be equivalent to a 3M Timing Pulley with 20 teeth, or an MXL Timing Pulley with 24 teeth

Idler Pulley

Features

  • Aluminium body with integral side flanges to constrain belt side movement.
  • Twin roller bearings, one at each end of the bore, to provide stable location and minimal rotational resistance.
  • Robust M5 mounting bolt, onto which inner bearing races are clamped, to simplify installation into a belt drive arrangement. An M5 nut and washer are also included.
  • Installation into a slotted aperture or onto a moveable arm will give tensioning adjustment facility.
  • For Idler Pulley incorporated into an adjustable tensioning mechanism, see below.
  • Idler Pulley
    Idler Pulley Drawing Side
    Idler Pulley Drawing Front
    Idler Pulley Drawing Model

    Idler Pulley with Adjustable Mounting Bracket

    This motionco belt tensioning device features the Idler Pulley above attached to an extremely versatile and easily adjustable mounting device.

    Features

  • Well proven motionco Idler Pulley, as detailed above.
  • Robust Mounting Bracket with simply useable adjustment mechanism.
  • Attachment to belt drive structure by twin M5 bolts, with parallel or perpendicular mounting options.
  • Easily reconfigured assembly for alternative tracking positions and tensioning geometry.
  • Fully compatible with Meckit® Construction System.
  • Idler Pulley with mounting bracket

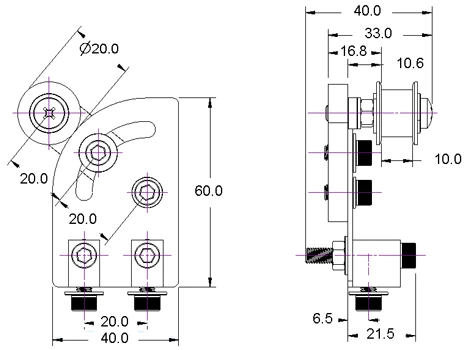

    Idler Pulley Drawing Side
    Display: ListGrid
    Show:
    Sort By:
    Idler Pulley, 20mm dia, for belt widths up to 9mm
    IDLER-20
    Idler Pulley, 20mm dia, for belt widths up to 9mm ..
    Stock: 1 pc
    £9.37 /each
    Excl. VAT: £7.81
    10 or more: £8.63 /each
    25 or more: Please ask
    Idler Pulley with Adjustable Mounting Bracket
    IDLER-20-B
    Idler Pulley with Adjustable Mounting Bracket, 20mm dia, for belt widths up to 9mm ..
    Stock: 3 - 4 Weeks
    £21.74 /each
    Excl. VAT: £18.11
    10 or more: £20.22 /each
    25 or more: Please ask
