3M HTD Timing Belts

A range of timing belts in 3mm HTD pitch. these "High Torque Drive" belts are suitable for more demanding applications than our MXL drives. Our 3M belts can be used with our range of Aluminium 3M Pulleys.

Our Centre Distance Calculator will work out your pulley centres, based on our range of belts.

3M Timing Belt

Specification

Material: Nylon Covered, Fiberglass Reinforced, Neoprene
Tooth form: 3mm HTD
Belt width: 9mm
Working Tension: 100 N (22 lbs. )
Operating temperature range: -34°C to +85°C (-30° to +185°F )

Dimensions(mm)

3M Belt drawing
Part no No. of Teeth Pitch Length (mm) Pitch Length (Inches)
B3M029 29 87 3.425
B3M037 37 111 4.370
B3M050 50 150 5.905
B3M065 65 195 7.677
B3M075 75 225 8.858
B3M080 80 240 9.449
B3M088 88 264 10.394
B3M095 95 285 11.220
B3M100 100 300 11.811
B3M108 108 324 12.756
B3M115 115 345 13.583
B3M125 125 375 14.764
B3M130 130 390 15.354
Part no No. of Teeth Pitch Length (mm) Pitch Length (Inches)
B3M140 140 420 16.535
B3M149 149 447 17.598
B3M158 158 474 18.661
B3M160 160 480 18.898
B3M167 167 501 19.724
B3M177 177 531 20.906
B3M188 188 564 22.205
B3M199 199 597 23.504
B3M202 202 606 23.858
B3M225 225 675 26.570
B3M250 250 750 29.528
B3M375 375 1125 44.291
B3M415 415 1245 49.157

Select from our range of 3M belts below.

Display: ListGrid
Show:
Sort By:
HTD Rubber Timing Belt, 29 T
B3M029
HTD Rubber Timing Belt, 29 T, 9mm wide, length 87mm..
Stock: 14 pcs
£6.16 /each
Excl. VAT: £5.13
10 or more: £4.88 /each
25 or more: Please ask
HTD Rubber Timing Belt, 37 T
B3M037
HTD Rubber Timing Belt, 37 T, 9mm wide, length 111mm..
Stock: 10 pcs
£6.40 /each
Excl. VAT: £5.33
10 or more: £5.08 /each
25 or more: Please ask
HTD Rubber Timing Belt, 49 T
B3M049
HTD Rubber Timing Belt, 49 T, 9mm wide, length 147mm ..
Stock: 14 pcs
£6.80 /each
Excl. VAT: £5.67
10 or more: £5.39 /each
25 or more: Please ask
HTD Rubber Timing Belt, 50 T
B3M050
HTD Rubber Timing Belt, 50 T, 9mm wide, length 150mm ..
Stock: 13 pcs
£6.84 /each
Excl. VAT: £5.70
10 or more: £5.42 /each
25 or more: Please ask
HTD Rubber Timing Belt, 65 T
B3M065
HTD Rubber Timing Belt, 65 T, 9mm wide, length 195mm..
Stock: 15 pcs
£6.86 /each
Excl. VAT: £5.72
10 or more: £5.45 /each
25 or more: Please ask
HTD Rubber Timing Belt, 75 T
B3M075
HTD Rubber Timing Belt, 75 T, 9mm wide, length 225mm ..
Stock: 16 pcs
£6.90 /each
Excl. VAT: £5.75
10 or more: £5.46 /each
25 or more: Please ask
HTD Rubber Timing Belt, 80 T
B3M080
HTD Rubber Timing Belt, 80 T, 9mm wide, length 240mm ..
Stock: 10 pcs
£7.15 /each
Excl. VAT: £5.96
10 or more: £5.66 /each
25 or more: Please ask
HTD Rubber Timing Belt, 88 T
B3M088
HTD Rubber Timing Belt, 88 T, 9mm wide, length 264mm..
Stock: 5 pcs
£7.21 /each
Excl. VAT: £6.01
10 or more: £5.71 /each
25 or more: Please ask
HTD Rubber Timing Belt, 95 T
B3M095
HTD Rubber Timing Belt, 95 T, 9mm wide, length 285mm..
Stock: 6 pcs
£7.27 /each
Excl. VAT: £6.06
10 or more: £5.75 /each
25 or more: Please ask
HTD Rubber Timing Belt, 100 T
B3M100
HTD Rubber Timing Belt, 160 T, 9mm wide, length 300mm ..
Stock: 15 pcs
£7.57 /each
Excl. VAT: £6.31
10 or more: £6.00 /each
25 or more: Please ask
HTD Rubber Timing Belt, 108 T
B3M108
HTD Rubber Timing Belt, 108 T, 9mm wide, length 324mm ..
Stock: 8 pcs
£7.60 /each
Excl. VAT: £6.33
10 or more: £6.01 /each
25 or more: Please ask
HTD Rubber Timing Belt, 115 T
B3M115
HTD Rubber Timing Belt, 115 T, 9mm wide, length 345mm ..
Stock: 13 pcs
£7.63 /each
Excl. VAT: £6.36
10 or more: £6.04 /each
25 or more: Please ask
HTD Rubber Timing Belt, 125 T
B3M125
HTD Rubber Timing Belt, 125 T, 9mm wide, length 375mm..
Stock: 44 pcs
£8.03 /each
Excl. VAT: £6.69
10 or more: £6.35 /each
25 or more: Please ask
HTD Rubber Timing Belt, 130 T
B3M130
HTD Rubber Timing Belt, 130 T, 9mm wide, length 390mm..
Stock: 28 pcs
£8.10 /each
Excl. VAT: £6.75
10 or more: £6.40 /each
25 or more: Please ask
HTD Rubber Timing Belt, 140 T
B3M140
HTD Rubber Timing Belt, 140 T, 9mm wide, length 420mm..
Stock: 16 pcs
£8.24 /each
Excl. VAT: £6.87
10 or more: £6.53 /each
25 or more: Please ask
HTD Rubber Timing Belt, 149 T
B3M149
HTD Rubber Timing Belt, 149 T, 9mm wide, length 447mm..
Stock: 27 pcs
£8.32 /each
Excl. VAT: £6.93
10 or more: £6.58 /each
25 or more: Please ask
HTD Rubber Timing Belt, 158 T
B3M158
HTD Rubber Timing Belt, 158 T, 9mm wide, length 474mm..
Stock: 9 pcs
£8.35 /each
Excl. VAT: £6.96
10 or more: £6.60 /each
25 or more: Please ask
HTD Rubber Timing Belt, 160 T
B3M160
HTD Rubber Timing Belt, 160 T, 9mm wide, length 480mm..
Stock: 6 pcs
£8.38 /each
Excl. VAT: £6.98
10 or more: £6.61 /each
25 or more: Please ask
HTD Rubber Timing Belt, 167 T
B3M167
HTD Rubber Timing Belt, 167 T, 9mm wide, length 501mm..
Stock: 16 pcs
£8.45 /each
Excl. VAT: £7.04
10 or more: £6.67 /each
25 or more: Please ask

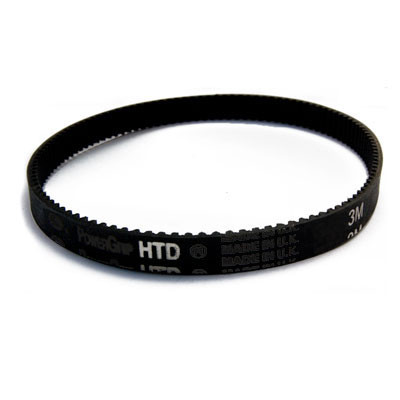

HTD Rubber Timing Belt, 177 T
B3M177
HTD Rubber Timing Belt, 177 T, 9mm wide, length 531mm..
Stock: 26 pcs
£8.58 /each
Excl. VAT: £7.15
10 or more: £6.77 /each
25 or more: Please ask
HTD Rubber Timing Belt, 188 T
B3M188
HTD Rubber Timing Belt, 188 T, 9mm wide, length 564mm..
Stock: 10 pcs
£8.95 /each
Excl. VAT: £7.46
10 or more: £7.07 /each
25 or more: Please ask
HTD Rubber Timing Belt, 199 T
B3M199
HTD Rubber Timing Belt, 199 T, 9mm wide, length 597mm..
Stock: 24 pcs
£9.16 /each
Excl. VAT: £7.63
10 or more: £7.21 /each
25 or more: Please ask
HTD Rubber Timing Belt, 202 T
B3M202
HTD Rubber Timing Belt, 202 T, 9mm wide, length 606mm..
Stock: 10 pcs
£9.35 /each
Excl. VAT: £7.79
10 or more: £7.38 /each
25 or more: Please ask
HTD Rubber Timing Belt, 225 T
B3M225
HTD Rubber Timing Belt, 225 T, 9mm wide, length 675mm ..
Stock: 20 pcs
£9.77 /each
Excl. VAT: £8.14
10 or more: £7.70 /each
25 or more: Please ask
HTD Rubber Timing Belt, 250 T
B3M250
HTD Rubber Timing Belt, 250 T, 9mm wide, length 750mm..
Stock: 9 pcs
£10.16 /each
Excl. VAT: £8.47
10 or more: £8.03 /each
25 or more: Please ask
HTD Rubber Timing Belt,375 T
B3M375
HTD Rubber Timing Belt, 375 T, 9mm wide, length 1125mm..
Stock: 3 - 4 Weeks
£14.68 /each
Excl. VAT: £12.23
10 or more: £11.53 /each
25 or more: Please ask
HTD Rubber Timing Belt, 415 T
B3M415
HTD Rubber Timing Belt, 415 T, 9mm wide, length 1245mm..
Stock: 16 pcs
£16.62 /each
Excl. VAT: £13.85
10 or more: £13.04 /each
25 or more: Please ask
