Round Belt Pulleys

Round Belt Pulleys to suit 3mm and 6mm diameter round belting. These drives are suitable where a synchronous drive is not required. These pulleys run with our Round Belts.

Aluminium Pulleys


Specification
Material: Aluminium
To suit Belt Diameters: 3mm and 6mm

Grooved Round Belt Pulley
Grooved Round Belt Pulley Diagram
All dimensions in mm
Part no
(Link)
To Suit
Belt Dia.
Pitch
Diameter
Outside
Diameter
"A"
Bore
"d"
Hub
dia.
"Dm"
Length
"L"
"F" "T" Set
Screw
Bore Reducer
(click to see
matching sizes)
RP3D-20 3 20 21.2 6 21.2 12 6 3 M3

RP3D-40 3 40 41.2 6 20 12 6 3 M3

RP3D-60 3 60 61.2 6 20 12 6 3 M3

RP6D-40 6 40 42.14 8 30 18 10 4 M4

RP6D-60 6 60 62.14 8 30 18 10 4 M4

RP6D-80 6 80 82.14 8 30 18 10 4 M4

Idlers

Grooved Round Belt Pulley/Idlers
Grooved Round Belt Pulley/Idler Diagram


Specification
Material: Nylon
Insert: None
To suit Belt Dia: 3mm + 6mm

All dimensions in mm
Part no
To Suit
Belt Dia.
D
Outside
Dia.
d
Bore
Dia.
A
Hub
Dia.
B
Overall
Width
Dg
Groove
Depth
RP3D25025 3 25 6.35(1/4") 9.7 7.4 2
RP6D57008 6 57 8 13 12 6

Select from our range of round belt pulleys below.

Display: ListGrid
Show:
Sort By:
Grooved Pulley, 20mm dia, for 3mm Round Belt
RP3D-20
Grooved Pulley, 20mm diameter, for 3mm Round Belt ..
Stock: 21 pcs
£5.23 /each
Excl. VAT: £4.36
10 or more: £4.27 /each
25 or more: Please ask
Grooved Pulley, 40mm dia, for 3mm Round Belt
RP3D-40
Grooved Pulley, 40mm diameter, for 3mm Round Belt ..
Stock: 34 pcs
£6.89 /each
Excl. VAT: £5.74
10 or more: £5.62 /each
25 or more: Please ask
Grooved Pulley, 60mm dia, for 3mm Round Belt
RP3D-60
Grooved Pulley, 60mm diameter, for 3mm Round Belt ..
Stock: 8 pcs
£8.53 /each
Excl. VAT: £7.11
10 or more: £6.96 /each
25 or more: Please ask
25mm Dia. Idler Pulley, to suit 3mm round Belt
RP3D25025
25mm Dia. Idler Pulley, 1/4" Bore, to suit 3mm Belt..
Stock: 23 pcs
£1.18 /each
Excl. VAT: £0.98
10 or more: £0.95 /each
25 or more: Please ask

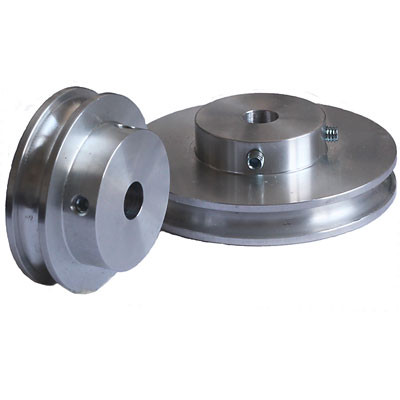

Grooved Pulley, 40mm dia, for 6mm Round Belt
RP6D-40
Grooved Pulley, 40mm diameter, for 6mm Round Belt ..
Stock: 12 pcs
£7.30 /each
Excl. VAT: £6.08
10 or more: £5.95 /each
25 or more: Please ask
Grooved Pulley, 60mm dia, for 6mm Round Belt
RP6D-60
Grooved Pulley, 60mm diameter, for 6mm Round Belt ..
Stock: 14 pcs
£8.81 /each
Excl. VAT: £7.34
10 or more: £7.19 /each
25 or more: Please ask
Grooved Pulley, 80mm dia, for 6mm Round Belt
RP6D-80
Grooved Pulley, 80mm diameter, for 6mm Round Belt ..
Stock: 3 - 4 Weeks
£11.15 /each
Excl. VAT: £9.29
10 or more: £9.10 /each
25 or more: Please ask
57mm Dia. Idler Pulley, to suit 6mm round Belt
RP6D57008
57mm Dia. Idler Pulley, 8mm Bore to suit 6mm round Belt ..
Stock: 44 pcs
£2.27 /each
Excl. VAT: £1.89
10 or more: £1.81 /each
25 or more: Please ask
